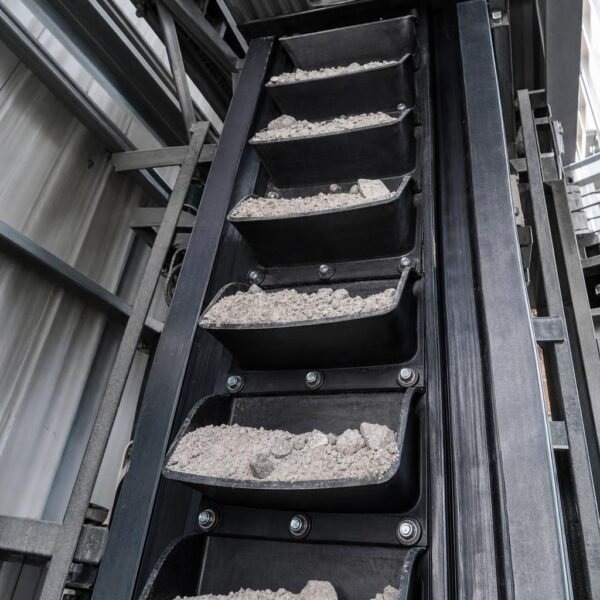

Asmatek Industries’ Bucket Elevator Belts are designed for vertical bulk-material conveying applications where reliable belt strength, controlled elongation and secure bucket attachment are essential.
Bucket elevators use buckets attached to a continuously moving belt to lift materials vertically. The belt therefore serves as a critical load-bearing component of the complete conveying system and must be selected according to elevator height, capacity, material characteristics, belt speed and operating conditions.
The belts are available with different tensile-member constructions, including Cotton, Nylon, EP, Kevlar and Steel Cord. A wide range of belt widths from 100 mm to 2500 mm and tensile strengths from 315 N/mm to 6300 N/mm are specified in the supplied product information.
Features such as low elongation, high bolt-tear resistance, strong fastener holding and suitability for small pulley diameters support different bucket elevator configurations. Cover compounds can also be selected for specific requirements, including heat-resistant, fire-resistant, oil-resistant and white food-grade constructions.
Key Features
- Designed for vertical bulk-material conveying
- Suitable for fine materials as well as larger lumps
- Tensile members available in Cotton, Nylon, EP, Kevlar and Steel Cord
- Belt widths available from 100 mm to 2500 mm
- Tensile strengths from 315 N/mm to 6300 N/mm
- Low elongation for applications using shorter take-up systems
- High bolt-tear resistance
- Strong fastener and clamping characteristics
- Suitable for small pulley diameters
- Multiple cover compound options
- Heat-resistant, fire-resistant, oil-resistant and white food-grade cover options available
Specifications
- Material: Conveyor belt with application-specific tensile reinforcement
- Color: Not provided
- Size: Widths from 100 mm to 2500 mm
- Dimensions: Width range provided; other dimensions not provided
- Weight: Not provided
- Quantity: Not provided
- Tensile Members: Cotton, Nylon, EP, Kevlar, Steel Cord
- Tensile Strength: 315 N/mm to 6300 N/mm
- Pulley Compatibility: Suitable for small pulley diameters
- Elongation: Low elongation construction
- Cover Compounds: Heat resistant, fire resistant, oil resistant and white food grade
- Other Specifications: High bolt-tear resistance, fastener strength and clamping characteristics
Applications
- Sand, gravel and stone industries
- Cement and concrete plants
- Heating stations and power stations
- Garbage incineration plants
- Asphalt mixing plants
- Recycling and compost plants
- Mineral processing
- Timber industries and sawmills
- Farming and agricultural applications
- Warehousing and silo feeding
- Docks and ship loading/unloading
- Sugar refineries
- Salt mines
- Potato and starch processing
- Foundries
- Waste treatment plants
